PHOTO C164
1uF changes to 10uF
Remove C164, which is a 1uf eletrolytic, but do not replace yet.

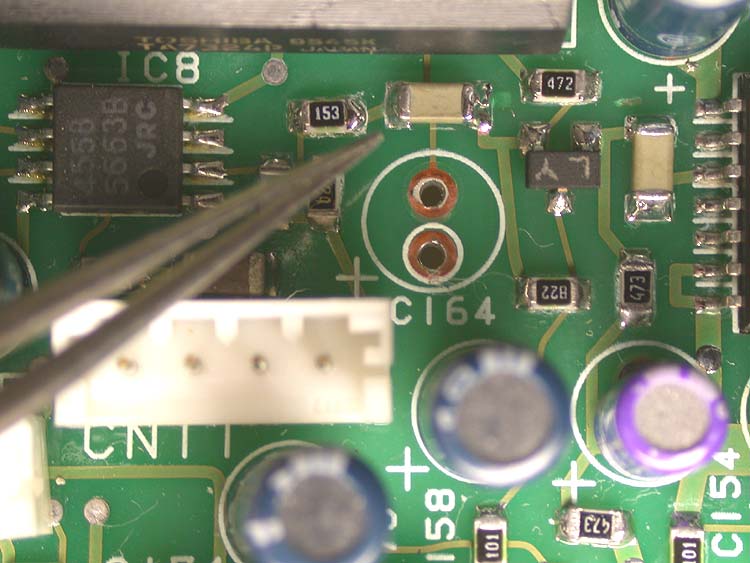

Right above C164, is another chip capacitor C161. (See Photo C161) It is best to replace C161 now with a 1uF 1206 series surface mount capacitor. C161 was a .1 SMT.
Notice C161 is removed and if you look to the right you will see C156 is the previous step.
Leave out C164 for now.

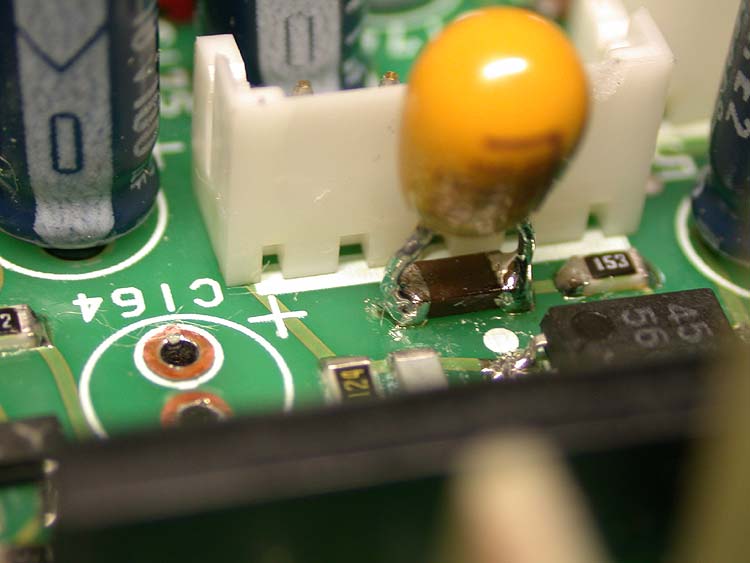

C164 & C161
Photo courtesy of W5JAY
